Deep Cycle Gel Batteries

Deep Cycle Gel Batteries

Our gel batteries, classified as a type of valve-regulated lead-acid (VRLA) batteries, incorporate a gel electrolyte to immobilize sulfuric acid, enhancing safety significantly. This design ensures spill-proof characteristics, making our gel batteries a reliable choice for a wide range of applications.

They find common use in solar power systems, recreational vehicles (RVs), and backup power setups, offering dependable and hassle-free energy storage. The sealed construction and resilience against deep discharges contribute to the durability and efficiency of our gel batteries over extended periods of use.



Available Models

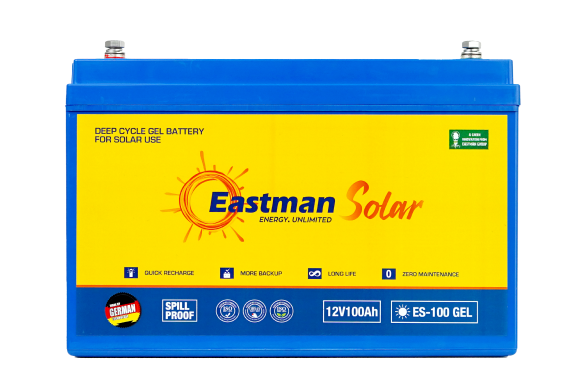

GEL-100

Power your adventures with our 100Ah Gel Battery

From remote cabins to off-grid living, experience reliable and spill-proof energy storage. Ideal for solar power systems and beyond.

Description100150200250
Capacity (25°C)
(10HR, 3HR, 1HR)
100Ah, 75Ah, 55Ah150Ah, 112.5Ah, 83Ah200Ah, 150Ah, 110Ah250Ah, 187.5Ah, 140Ah
Terminal TypeT16T18T18T18
Internal Resistance (Fully charged, 25°C)Approx. 5mQApprox. 3.8mΩApprox. 3.3mΩApprox. 2.8mΩ
Float charging voltage (25°C)13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block
Cycle charging voltage (25°C)14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block
Cycle Life> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.
Maximum Charging Current20A30A40A50A
Pulse Discharge Current800A (5 sec.)1200A (5 sec.)1400A (5 sec.)1500A (5 sec.)
Available MarketAF, ME, CIS

Product Features

  • Superior deep cycle design
  • Very long life in deep cycle applications
  • Superior recovery from deep discharge
  • Wide working environment

Datasheet

Download

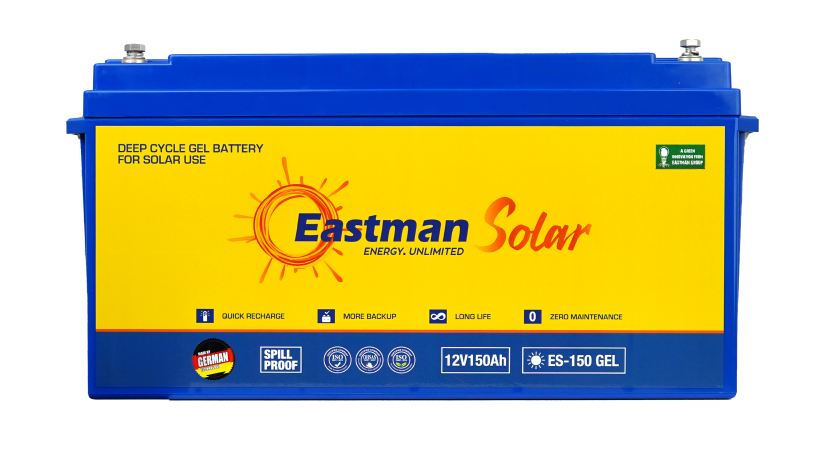

GEL-150

Elevate your power needs with our 150Ah Gel Battery

Dependable and hassle-fr this battery is perfect for RV enthusiasts and those seeking robust backup power solutions.

Description100150200250
Capacity (25°C)
(10HR, 3HR, 1HR)
100Ah, 75Ah, 55Ah150Ah, 112.5Ah, 83Ah200Ah, 150Ah, 110Ah250Ah, 187.5Ah, 140Ah
Terminal TypeT16T18T18T18
Internal Resistance (Fully charged, 25°C)Approx. 5mQApprox. 3.8mΩApprox. 3.3mΩApprox. 2.8mΩ
Nominal Operating Temperature25°C ±3°C (77°F ±5°F)25°C ±3°C (77°F ±5°F)25°C ±3°C (77°F ±5°F)25°C ±3°C (77°F ±5°F)
Float charging voltage (25°C)13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block
Cycle charging voltage (25°C)14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block
Cycle Life> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.
Maximum Charging Current20A30A40A50A
Pulse Discharge Current800A (5 sec.)1200A (5 sec.)1400A (5 sec.)1500A (5 sec.)
Available MarketAF, ME, CIS

Product Features

  • Superior deep cycle design
  • Very long life in deep cycle applications
  • Superior recovery from deep discharge
  • Wide working environment

Datasheet

Download

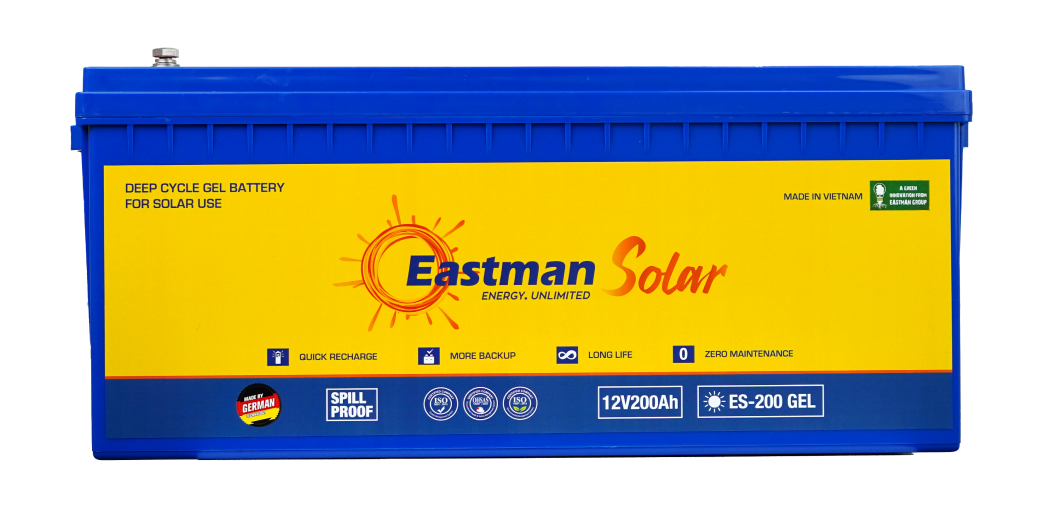

GEL-200

Experience sustained power with our 200Ah Gel Battery

Designed for durability and efficiency, this battery is a top choice for sustainable living and off-grid applications.

Description100150200250
Capacity (25°C)
(10HR, 3HR, 1HR)
100Ah, 75Ah, 55Ah150Ah, 112.5Ah, 83Ah200Ah, 150Ah, 110Ah250Ah, 187.5Ah, 140Ah
Terminal TypeT16T18T18T18
Internal Resistance (Fully charged, 25°C)Approx. 5mQApprox. 3.8mΩApprox. 3.3mΩApprox. 2.8mΩ
Nominal Operating Temperature25°C ±3°C (77°F ±5°F)25°C ±3°C (77°F ±5°F)25°C ±3°C (77°F ±5°F)25°C ±3°C (77°F ±5°F)
Float charging voltage (25°C)13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block
Cycle charging voltage (25°C)14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block
Cycle Life> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.
Maximum Charging Current20A30A40A50A
Pulse Discharge Current800A (5 sec.)1200A (5 sec.)1400A (5 sec.)1500A (5 sec.)
Available MarketAF, ME, CIS

Product Features

  • Superior deep cycle design
  • Very long life in deep cycle applications
  • Superior recovery from deep discharge
  • Wide working environment

Datasheet

Download

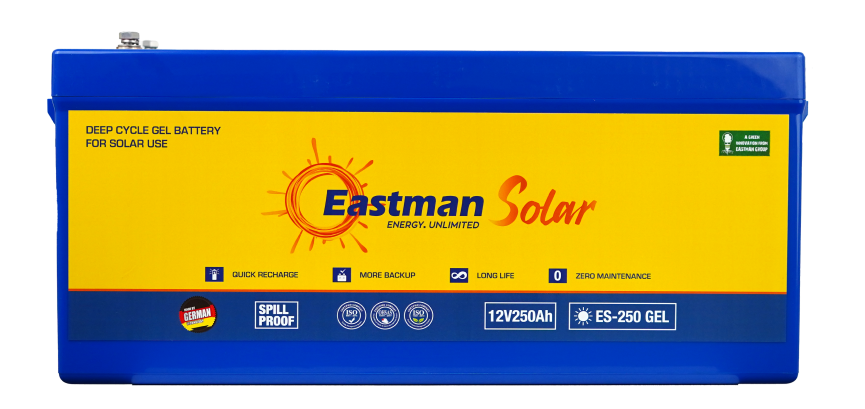

GEL-250

Empower your energy independence with our 250Ah Gel Battery

Resilient against deep discharges, this battery ensures reliable power for extended periods. A robust solution for diverse off-grid scenarios.

Description100150200250
Capacity (25°C)
(10HR, 3HR, 1HR)
100Ah, 75Ah, 55Ah150Ah, 112.5Ah, 83Ah200Ah, 150Ah, 110Ah250Ah, 187.5Ah, 140Ah
Terminal TypeT16T18T18T18
Internal Resistance (Fully charged, 25°C)Approx. 5mQApprox. 3.8mΩApprox. 3.3mΩApprox. 2.8mΩ
Nominal Operating Temperature25°C ±3°C (77°F ±5°F)25°C ±3°C (77°F ±5°F)25°C ±3°C (77°F ±5°F)25°C ±3°C (77°F ±5°F)
Float charging voltage (25°C)13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block13.50 to 13.80V Temperature compensation: -18mV/°C/Block
Cycle charging voltage (25°C)14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block14.50 to 14.70V Temperature compensation: -30mV/°C/Block
Cycle Life> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.> 750 cycles @ 0.2C 50% DOD.
Maximum Charging Current20A30A40A50A
Pulse Discharge Current800A (5 sec.)1200A (5 sec.)1400A (5 sec.)1500A (5 sec.)
Available MarketAF, ME, CIS

Product Features

  • Superior deep cycle design
  • Very long life in deep cycle applications
  • Superior recovery from deep discharge
  • Wide working environment

Datasheet

Download

Applications

Batteries play a pivotal role in a diverse range of applications, serving as essential components in various sectors, spanning from energy storage to electric vehicles.
