Lead-acid Pb Replacement

The lead-acid PB replacement battery preserves the form factor of traditional lead-acid batteries while incorporating high-safety LiFePo4 (Lithium Phosphate) cells. This ensures superior energy density, a broad operating temperature range, and a variety of capacity options, available in both 12V and 24V configurations. This makes replacing lead-acid batteries remarkably convenient, offering substantial cold-start capabilities, capable of initiating even with as little as 20% remaining capacity.



Available Models

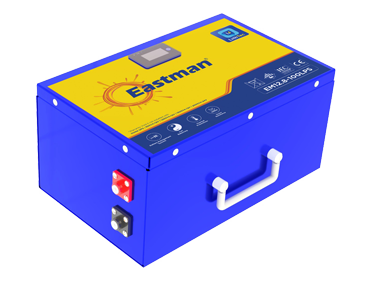

EM12.8-100LPS

Charge Faster. Live Freer.

Charge up to 4x faster than lead-acid batteries. Less downtime, more adventure, with solar-ready compatibility.

lead-acid-pb-replacement-battery
ModelEM12.8-100LPSEM12.8-150LPSEM12.8-230LPSEM12.8-280LPSEM12.8-314LPSEM25.6-100LPS
Nominal Voltage (V)12.812.812.812.812.825.6
Rated Capacity (Ah)100150230280314100
Charge Voltage (V)14.614.614.614.614.629.2
Standard Charging Current (A)203046566220
Standard Discharging Current (A)507511514014050
Max. Charging Current (A)100150150150150100
Max. Discharging Current (A)100150150150150100
Discharge Cut off Voltage (V)101010101020
Nominal Energy (kWh)1.281.922.943.584.012.56
Operating Temp. Charge0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C
Operating Temp. Discharge-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C
Working Humidity<90%RH<90%RH<90%RH<90%RH<90%RH<90%RH
Working Altitude<4000m<4000m<4000m<4000m<4000m<4000m
IP RatingIP 65IP 65IP 65IP 65IP 65IP 65
Weight (Kg)142027323226
Mobile Application Connectivity FeatureAvailableAvailableAvailableAvailableAvailableAvailable
Battery SOC IndicatorAvailableAvailableAvailableAvailableAvailableAvailable
Dimension (mm) L*W*H320×186×226330×275×165387×205×270410×200×284410×200×284364×209×172

Product Features

  • Fast charge and discharge: 10 times faster than lead-acid batteries.
  • Long cycle life.
  • Wide temperature range: –10°C to 65°C.
  • Lightweight: one-third the weight of a lead-acid battery with the same capacity.
  • Low self-discharge rate: 2% per month.
  • Metal body.

Datasheet

Download

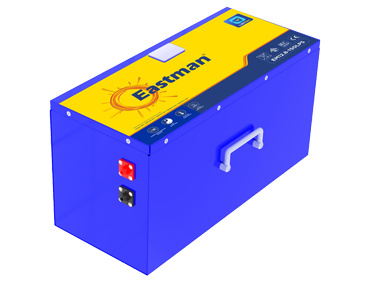

EM12.8-150LPS

Reliable lithium energy built for every journey.

Compatible with solar, off-grid, and demanding conditions.

lead-acid-pb-replacement-battery
ModelEM12.8-100LPSEM12.8-150LPSEM12.8-230LPSEM12.8-280LPSEM12.8-314LPSEM25.6-100LPS
Nominal Voltage (V)12.812.812.812.812.825.6
Rated Capacity (Ah)100150230280314100
Charge Voltage (V)14.614.614.614.614.629.2
Standard Charging Current (A)203046566220
Standard Discharging Current (A)507511514014050
Max. Charging Current (A)100150150150150100
Max. Discharging Current (A)100150150150150100
Discharge Cut off Voltage (V)101010101020
Nominal Energy (kWh)1.281.922.943.584.012.56
Operating Temp. Charge0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C
Operating Temp. Discharge-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C
Working Humidity<90%RH<90%RH<90%RH<90%RH<90%RH<90%RH
Working Altitude<4000m<4000m<4000m<4000m<4000m<4000m
IP RatingIP 65IP 65IP 65IP 65IP 65IP 65
Weight (Kg)142027323226
Mobile Application Connectivity FeatureAvailableAvailableAvailableAvailableAvailableAvailable
Battery SOC IndicatorAvailableAvailableAvailableAvailableAvailableAvailable
Dimension (mm) L*W*H320×186×226330×275×165387×205×270410×200×284410×200×284364×209×172

Product Features

  • Fast charge and discharge: 10 times faster than lead-acid batteries.
  • Long cycle life.
  • Wide temperature range: –10°C to 65°C.
  • Lightweight: one-third the weight of a lead-acid battery with the same capacity.
  • Low self-discharge rate: 2% per month.
  • Metal body.

Datasheet

Download

EM12.8-230LPS

Smarter Power. Zero Hassle.

No water top-ups, no corrosion, no worries. Just plug, play, and enjoy maintenance-free energy.

lead-acid-pb-replacement-battery
ModelEM12.8-100LPSEM12.8-150LPSEM12.8-230LPSEM12.8-280LPSEM12.8-314LPSEM25.6-100LPS
Nominal Voltage (V)12.812.812.812.812.825.6
Rated Capacity (Ah)100150230280314100
Charge Voltage (V)14.614.614.614.614.629.2
Standard Charging Current (A)203046566220
Standard Discharging Current (A)507511514014050
Max. Charging Current (A)100150150150150100
Max. Discharging Current (A)100150150150150100
Discharge Cut off Voltage (V)101010101020
Nominal Energy (kWh)1.281.922.943.584.012.56
Operating Temp. Charge0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C
Operating Temp. Discharge-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C
Working Humidity<90%RH<90%RH<90%RH<90%RH<90%RH<90%RH
Working Altitude<4000m<4000m<4000m<4000m<4000m<4000m
IP RatingIP 65IP 65IP 65IP 65IP 65IP 65
Weight (Kg)142027323226
Mobile Application Connectivity FeatureAvailableAvailableAvailableAvailableAvailableAvailable
Battery SOC IndicatorAvailableAvailableAvailableAvailableAvailableAvailable
Dimension (mm) L*W*H320×186×226330×275×165387×205×270410×200×284410×200×284364×209×172

Product Features

  • Fast charge and discharge: 10 times faster than lead-acid batteries.
  • Long cycle life.
  • Wide temperature range: –10°C to 65°C.
  • Lightweight: one-third the weight of a lead-acid battery with the same capacity.
  • Low self-discharge rate: 2% per month.
  • Metal body.

Datasheet

Download

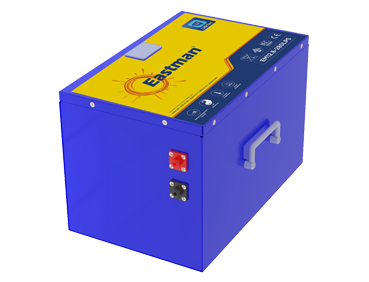

EM12.8-280LPS

Always Ready. Always Reliable.

Low self-discharge keeps power stored longer. Even after months, your battery is ready to perform.

lead-acid-pb-replacement-battery
ModelEM12.8-100LPSEM12.8-150LPSEM12.8-230LPSEM12.8-280LPSEM12.8-314LPSEM25.6-100LPS
Nominal Voltage (V)12.812.812.812.812.825.6
Rated Capacity (Ah)100150230280314100
Charge Voltage (V)14.614.614.614.614.629.2
Standard Charging Current (A)203046566220
Standard Discharging Current (A)507511514014050
Max. Charging Current (A)100150150150150100
Max. Discharging Current (A)100150150150150100
Discharge Cut off Voltage (V)101010101020
Nominal Energy (kWh)1.281.922.943.584.012.56
Operating Temp. Charge0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C
Operating Temp. Discharge-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C
Working Humidity<90%RH<90%RH<90%RH<90%RH<90%RH<90%RH
Working Altitude<4000m<4000m<4000m<4000m<4000m<4000m
IP RatingIP 65IP 65IP 65IP 65IP 65IP 65
Weight (Kg)142027323226
Mobile Application Connectivity FeatureAvailableAvailableAvailableAvailableAvailableAvailable
Battery SOC IndicatorAvailableAvailableAvailableAvailableAvailableAvailable
Dimension (mm) L*W*H320×186×226330×275×165387×205×270410×200×284410×200×284364×209×172

Product Features

  • Fast charge and discharge: 10 times faster than lead-acid batteries.
  • Long cycle life.
  • Wide temperature range: –10°C to 65°C.
  • Lightweight: one-third the weight of a lead-acid battery with the same capacity.
  • Low self-discharge rate: 2% per month.
  • Metal body.

Datasheet

Download

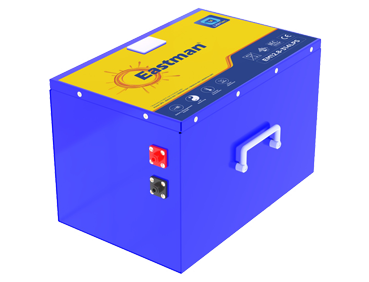

EM12.8-314LPS

Power That Fits Anywhere.

Install upright or on its side with ease. Perfect for tight spaces and custom configurations.

lead-acid-pb-replacement-battery
ModelEM12.8-100LPSEM12.8-150LPSEM12.8-230LPSEM12.8-280LPSEM12.8-314LPSEM25.6-100LPS
Nominal Voltage (V)12.812.812.812.812.825.6
Rated Capacity (Ah)100150230280314100
Charge Voltage (V)14.614.614.614.614.629.2
Standard Charging Current (A)203046566220
Standard Discharging Current (A)507511514014050
Max. Charging Current (A)100150150150150100
Max. Discharging Current (A)100150150150150100
Discharge Cut off Voltage (V)101010101020
Nominal Energy (kWh)1.281.922.943.584.012.56
Operating Temp. Charge0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C
Operating Temp. Discharge-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C
Working Humidity<90%RH<90%RH<90%RH<90%RH<90%RH<90%RH
Working Altitude<4000m<4000m<4000m<4000m<4000m<4000m
IP RatingIP 65IP 65IP 65IP 65IP 65IP 65
Weight (Kg)142027323226
Mobile Application Connectivity FeatureAvailableAvailableAvailableAvailableAvailableAvailable
Battery SOC IndicatorAvailableAvailableAvailableAvailableAvailableAvailable
Dimension (mm) L*W*H320×186×226330×275×165387×205×270410×200×284410×200×284364×209×172

Product Features

  • Fast charge and discharge: 10 times faster than lead-acid batteries.
  • Long cycle life.
  • Wide temperature range: –10°C to 65°C.
  • Lightweight: one-third the weight of a lead-acid battery with the same capacity.
  • Low self-discharge rate: 2% per month.
  • Metal body.

Datasheet

Download

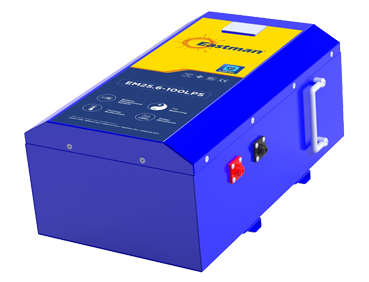

EM25.6-100LPS

Compact Power. Maximum Freedom.

Space-saving design for flexible installation. Lightweight, powerful, and ready for any setup.

lead-acid-pb-replacement-battery
ModelEM12.8-100LPSEM12.8-150LPSEM12.8-230LPSEM12.8-280LPSEM12.8-314LPSEM25.6-100LPS
Nominal Voltage (V)12.812.812.812.812.825.6
Rated Capacity (Ah)100150230280314100
Charge Voltage (V)14.614.614.614.614.629.2
Standard Charging Current (A)203046566220
Standard Discharging Current (A)507511514014050
Max. Charging Current (A)100150150150150100
Max. Discharging Current (A)100150150150150100
Discharge Cut off Voltage (V)101010101020
Nominal Energy (kWh)1.281.922.943.584.012.56
Operating Temp. Charge0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C0°C ~ 60°C
Operating Temp. Discharge-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C-10°C ~ 65°C
Working Humidity<90%RH<90%RH<90%RH<90%RH<90%RH<90%RH
Working Altitude<4000m<4000m<4000m<4000m<4000m<4000m
IP RatingIP 65IP 65IP 65IP 65IP 65IP 65
Weight (Kg)142027323226
Mobile Application Connectivity FeatureAvailableAvailableAvailableAvailableAvailableAvailable
Battery SOC IndicatorAvailableAvailableAvailableAvailableAvailableAvailable
Dimension (mm) L*W*H320×186×226330×275×165387×205×270410×200×284410×200×284364×209×172

Product Features

  • Fast charge and discharge: 10 times faster than lead-acid batteries.
  • Long cycle life.
  • Wide temperature range: –10°C to 65°C.
  • Lightweight: one-third the weight of a lead-acid battery with the same capacity.
  • Low self-discharge rate: 2% per month.
  • Metal body.

Datasheet

Download

Applications

From powering your adventures on the road to keeping your home secure and storing clean solar energy, our batteries deliver long cycle life, fast charge and discharge, and low self-discharge, making them a reliable and secure choice.

home-appliances

RV

Reliable lithium power keeps your RV ready for every adventure, without the hassle of lead-acid upkeep.

Eastman Dubai

Home

Our lithium replacement batteries deliver dependable, long-lasting energy storage with zero maintenance.

Eastman Dubai

Solar

Designed for faster charging and low self-discharge, our batteries ensure clean power is always on tap when you need it.
